Intellijel DesignsLine Out 1U

Item#
N13-5561
10hp
$39.00

In Stock Available immediately!
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed
main product photo

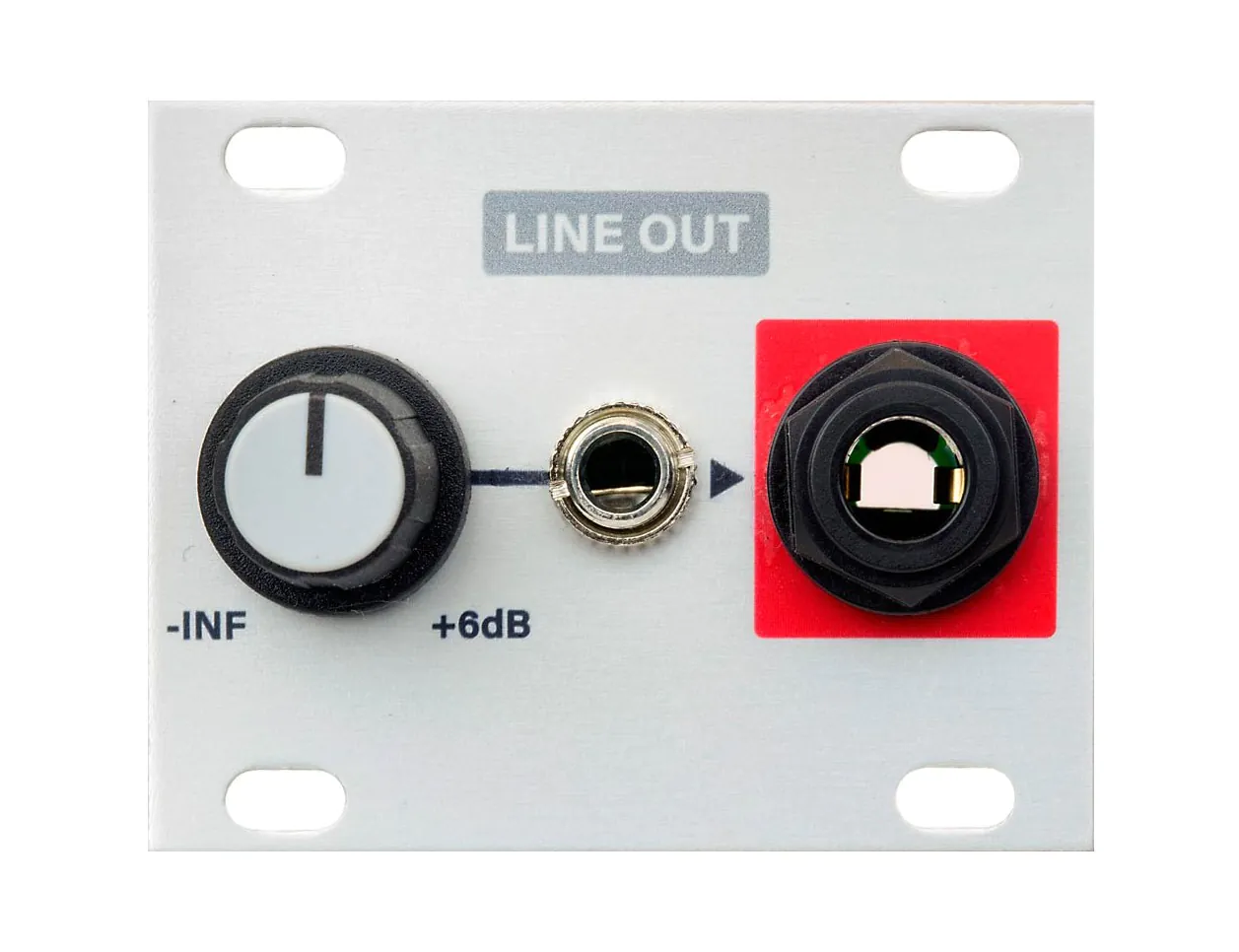

Intellijel Line Out 1U

NOTE: This 1U module is only compatible with Intellijel 1U cases. It is not compatible with Pulp Logic, Synthrotek or Vermona 1U cases.

The Line Out module provides a balanced professional line level output for Eurorack Synthesizers.

Line Out 1U Features

  • Unbalanced to Balanced line level converter
  • Gain control knob
  • 3.5mm input, 1/4"" output
  • 1U Eurorack Module
  • Width: 10HP
  • Depth: 27mm
  • Current Draw: 9mA@+/-12V
Product Demo Videos
Intellijel Line Out 1U
Line Out 1U - Eurorack level to Balanced Pro Line Level Ouput Shifter in 1U

This module allows you to interface your Eurorack modular system to the pro balanced line level world (+4 dBu). You can send audio out to rack mount/desktop FX units, patch to external line-level instruments like synths and drum machines, interface to a DAW, and much more.

Features:
1 x Eurorack modular level signals to Balanced TRS 1/4″ output path
Uses a high quality THATCorp balanced line driver IC
Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain.
