iConnectivity

SpinXLR Turntable Preamp

SKU
N13-6773
No Longer Available:  Contact us for a recommendation.
SpinXLR Turntable Preamp

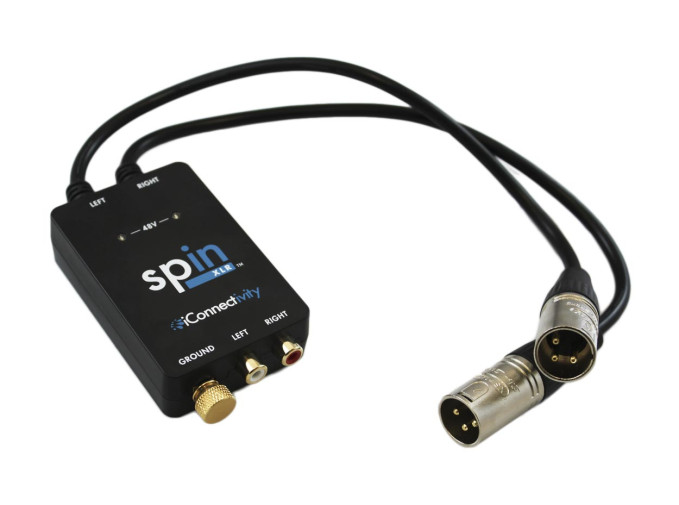

iConnectivity SpinXLR

The SpinXLR, from iConnectivity, is a superb preamp that lets users sample or record vinyl directly from a turntable and record it with their DAW. The unit utilizes XLR cables for a balanced and noise-free signal. Additionally, it is powered via +48V Phantom Power, effectively eliminating the need for external wall power.

SpinXLR Features

  • Stereo RCA Phono inputs accept magnetic phono cartridge outs from any turntable
  • Ground wire attachment eliminates hum
  • +48V phantom powered from any XLR input (audio interface, mixer, mic preamp) No wall power required
  • Standard RIAA de-emphasis equalization curve built in; no additional processing required
  • Balanced XLR outputs ensure low-noise connections, especially in live situations

Product Details

  • Max Input Level: 95mVrms
  • Total Harmonic Distortion and Noise: -77dB (A-weighting)
  • Signal to Noise Ratio: 76dB (A-weighting)
  • Nominal Gain: 23dB @ 1kHz
  • Frequency Response 10Hz - 50kHz (+/- 1.5 dB)
  • RIAA Equalization Flatness: +/- 0.5dB (20Hz-23kHz)
