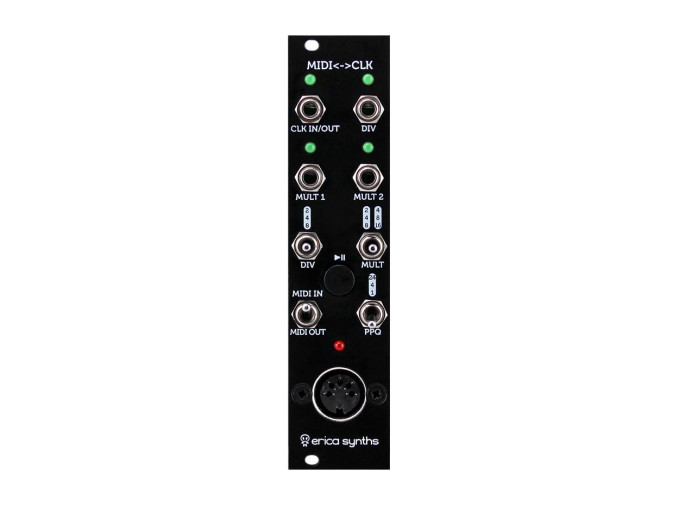

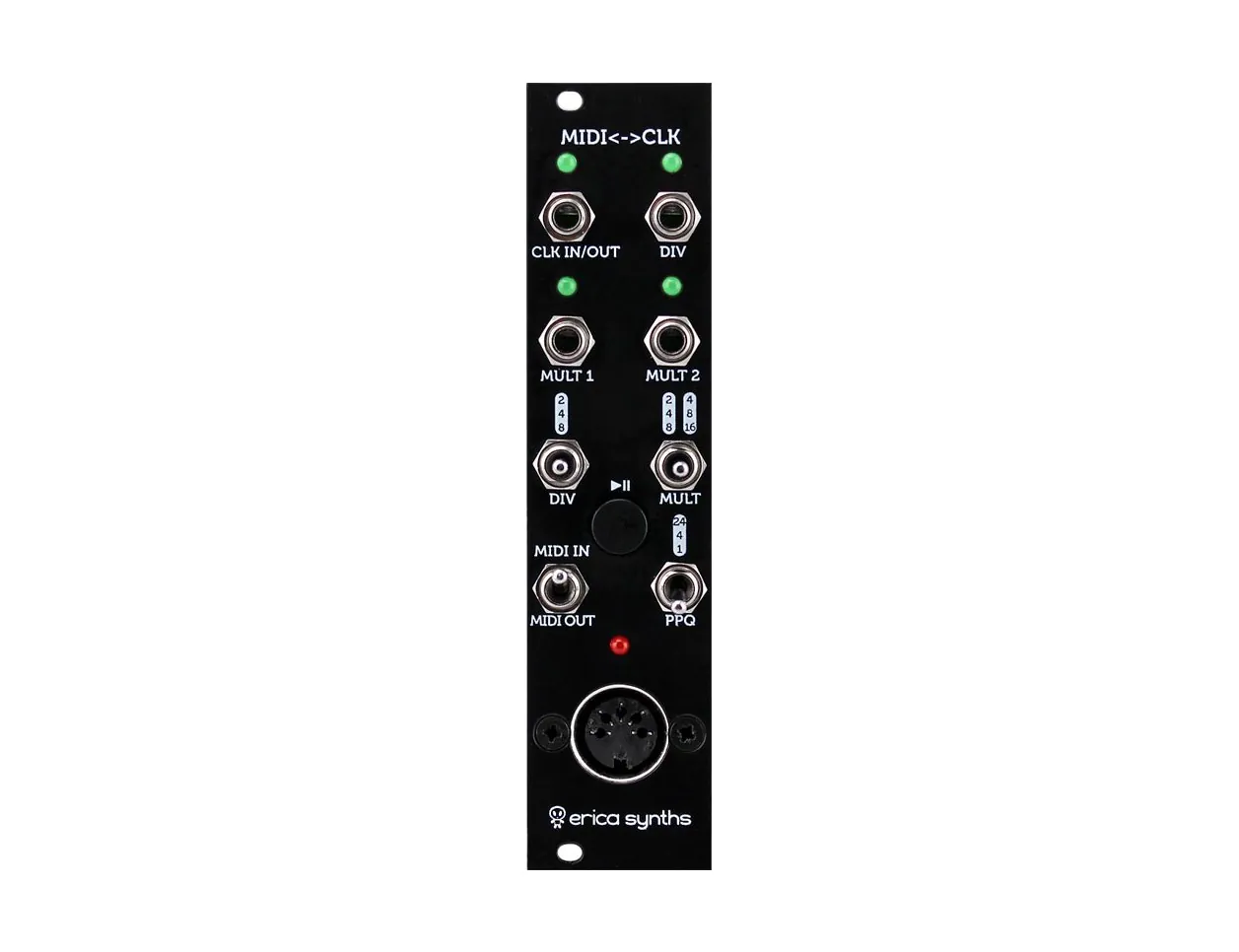

Erica Synths MIDI to Clock V2

The MIDI - Clock from Erica Synths is a handy utility for getting MIDI clock signals to control analog gates within the Eurorack modular synthesizer. A unique feature of the MIDI - Clock is the ability to run the other way. An analog clock can be patched into the clock input, and the MIDI jack will provide a MIDI clock output for synchronizing one's DAW to a modular  When not being used with MIDI, it can also function as a clock multiplier and divider. With adjustable PPQ, one can get any clocks to be synchronized, making it easy to interface digital grooves with modular basslines, or modular beats with sequenced MIDI.

MIDI to Clock V2 Features

  • Bidirectional MIDI to clock conversion
  • 1, 4 and 24 PPQ selection
  • Division by 2, 4, 8
  • Multiplication by 4, 6, 16
  • Two simultaneous multiplied clock outputs
  • Start/Stop button
  • MIDI start/stop message implementation
  • Incoming/outgoing clock LEDs
  • Eurorack Module
  • Width: 6HP
  • Depth: 20mm
  • Current Draw: 10ma@+12V, 0mA@-12V
