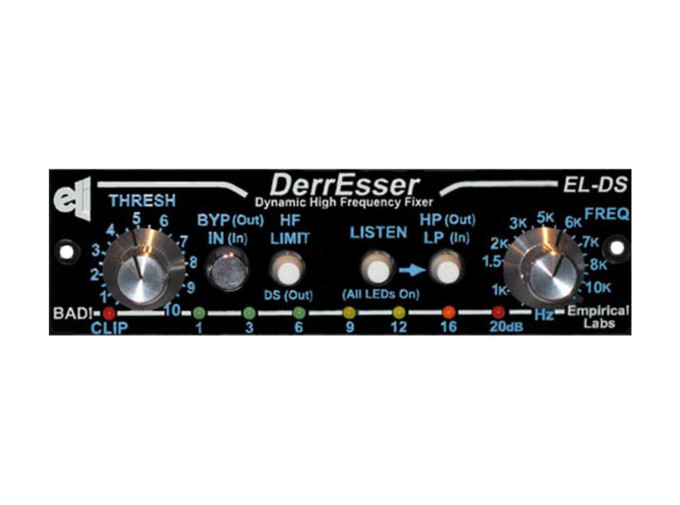

Empirical Labs ELDS-H DerrEsser De-Esser
The Empirical Labs ELDS-H DerrEsser is a multi-functional dynamic filtering module that is capable of functioning like a traditional de-esser, but can also be utilized for a variety of alternative processing means.
This is the HORIZONTAL version of the ELDS DerrEsser.
ELDS-H DerrEsser De-Esser Features
- Multi-purpose tone enhancement module for 500 Series racks
- Super low noise line input, or instrument preamp
- Six digitally controlled sections of analog processing
- Four sections of Equalization – One High Pass and 3 parametric bands
- Renowned Empirical Labs compression
- Saturation circuitry that scrunches the highs and allows hotter levels like tape
- Available with either horizontal or vertically oriented front panel configurations
- Frequency Response is 3 Hz to 180 kHz on eq section (-3dB points)
- Dynamic Range - 120 dB from maximum output (.5%THD soft clipping) to minimum output
- Noise floor with Mix on 0 is typically – 91dBu
- Distortion Ranges between .0006% and 12% at 1KHz, depending on mode and settings
- DC coupled Input and Outputs, - High quality audio caps used internally
- Input Impedance is 120K Ohm, Instrument In Mode. 20K input impedance in balanced Line in mode
- Maximum Input before hard clipping - +22dBm, “ Line In” mode
- Maximum Output - +28dBm (Mix = 0). Output impedance is 75 ohms
- Compressor Dynamics Time Constants - Attack time is about 1mS. Release 0.2 sec, program dependent, fixed internally
- Power Consumption – 4 Watts max. 2 Watts typical with 16Volt power supplies
- Shipping Weight - 1.3lbs
