VMC The Mastering Chain
DW Fearn VMC

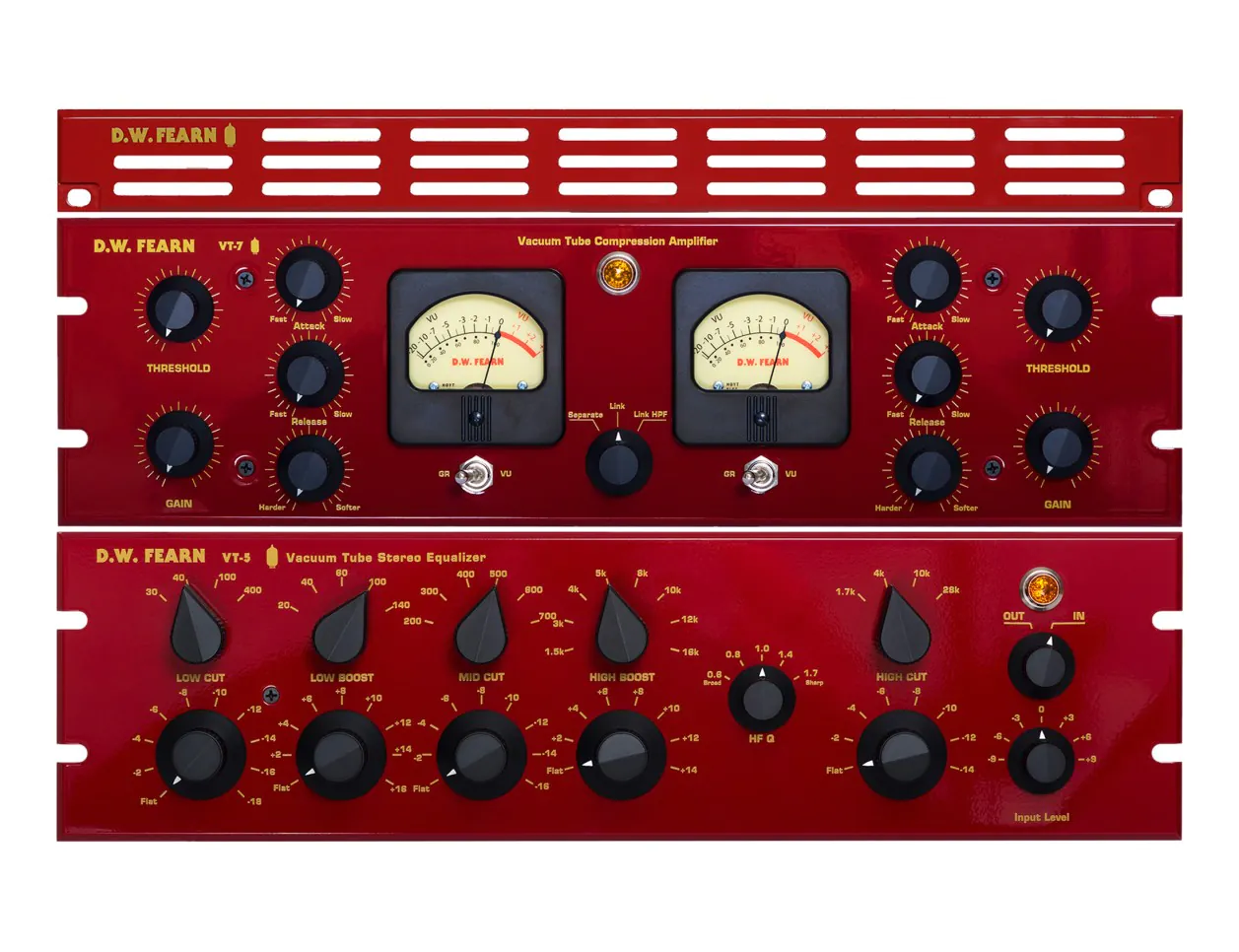

The DW Fearn VMC: Master Chain is an all-in-one powerhouse designed to elevate your audio production, combining the legendary VT-7 Stereo Compressor, VT-5 Stereo EQ, and the essential VPF all-aluminum vent into a seamless, high-performance unit. The VT-7 delivers transparent, musical compression with an all class-A vacuum tube audio path, allowing you to apply subtle or aggressive dynamics processing without introducing harsh artifacts. Whether you're tracking, mixing, or mastering, the VT-7's vintage-inspired circuitry and modern design provide a smooth, controlled sound that works across all musical genres, from pop to classical.
The VT-5 in the VMC chain offers a transformative approach to EQ, leveraging vacuum tube warmth to sweeten your sound or deliver a more aggressive edge when needed. Built with passive LC circuitry and Class-A triode vacuum tubes, the VT-5 operates with unmatched clarity and musicality, making it ideal for shaping your mix with precision. Featuring stepped controls for uniformity and repeatable results, the VT-5 offers customizable low and high boosts and cuts, as well as selectable midrange frequencies to help sculpt every element of your sound. Whether you're tracking vocals or mixing a full-band session, the VT-5 provides a level of musicality that's simply unmatched by traditional EQs.
To complete the VMC Master Chain, the included VPF all-aluminum vent ensures optimal airflow for your gear, keeping your rack cool while maintaining the consistent aesthetic of DW Fearn products. Designed specifically for complex units like the VT-7 and VT-5, the VPF prevents heat buildup and supports long-term reliability. The VMC Master Chain is the ultimate solution for the serious audio engineer who demands top-tier performance, iconic sound, and unparalleled control over every aspect of the audio process, all housed in one sleek, cohesive setup.
VMC Features
- Bundle that features the VT-5 and VT-7 along with the VPF vent
- VT-7
- All tube stereo compressor
- Dual mono, stereo, or stereo with high-pass filter
- Gain, Threshold, Attack, Release, and Harder/Softer controls for each channel
- XLR Inputs
- VT-5
- All tube EQ
- +/-9 dB Input gain
- Low Cut, Low Boost, Mid Cut, High Cut, and High Boost
- High bandwidth Q selectable: 0.6, 0.8, 1.0, 1.4, or 1.7
- Audio capacitors are polystyrene or polypropylene
- Inductors are custom-made
Product Details
- VT-7
- Dimensions 19" (48.26cm) W 5.25" (13.34cm) H 13" (22.9cm) D
- Weight 22 lbs (9.55 kg)
- Input 600 ohm source (nominal) balanced or unbalanced
- Input Load Impedance 32k ohms, transformer balanced bridging
- Nominal Input Level +4 dBm
- Maximum Input Level @ 20 cps +25 dBm
- Gain unity to +15dB
- Frequency Response ± 0.2 dB 20 cps to 20 kc ± 0.5 dB 11 cps to 28 kc -3 dB @ 0.5 cps & 65 kc
- THD + Noise <0.05% 20 cps to 20 kc
- Signal to Noise Ratio 78 dB minimum
- Output low-Z, transformer balanced
- Output source impedance 115 ohms
- Maximum Output Level +22 dBm into bridging input balanced or unbalanced
- Gain Reduction Range 0 to 20dB
- Power Requirements 120 or 220 VAC 50/60Hz, 85 W
- VT-5
- Dimensions 19" (48.26cm) W 5.25" (13.34cm) H 9" (22.86cm) D (VT-2 13" 22.9cm)
- Weight 20 lbs (9.1 kg)
- Input 600 ohms
- THD: less than 0.06%
- Input Load Impedance 40k ohms
- Minimum Input Level -20 dBm nominal
- Maximum Input Level @ 20 cps +25 dB 0 dB
- Gain ± 0.5 dB 20 cps to 20 kc [email protected]&80 kc
- Frequency Response <0.10% 20 cps to 20 kc
- Intermodulation Distortion SMPTE: <0.80%
- Signal to Noise Ratio 82 dB minimum low-Z, transformer balanced
- Output +22 dBm unterminated
- Maximum Output Level 120 or 220 VAC 50/60Hz, 85 W
