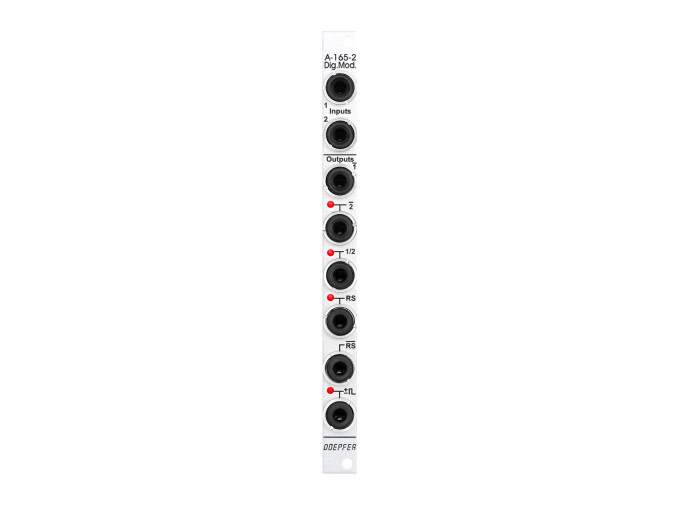

DoepferA-165-2 Digital Modifiers

Doepfer A-165-2

Doepfer's A-165-2 Digital Modifiers is a straightforward boolean utility module for Eurorack synthesizers. Any signal patched in will be converted to a boolean gate—that is, on or off. A variety of outputs are available to coax interesting trigger and gate signals out of your rig. In addition to standard inverse and toggle flip flop outputs, there's also a Set/Reset flip flop that utilizes both inputs: channel 1 sets the state high, while channel 2 sets it low. There's also an inverse output for this circuit, as well as a delta-based trigger output, generating a 50ms trigger on every low-high or high-low transistion at input 1. Surely a fun utility for power patchers, the A-165-2 is guaranteed to offer some delightful gate and trigger generation.

A-165-2 Features

• Digital boolean utility module
• Bipolar input signals clamped to utilize only the positive portions
• Offers a variety of inverse and flipflop outputs
