Der Mann mit der MaschineDroid MASTER18 Universal CV Processor with MIDI/USB

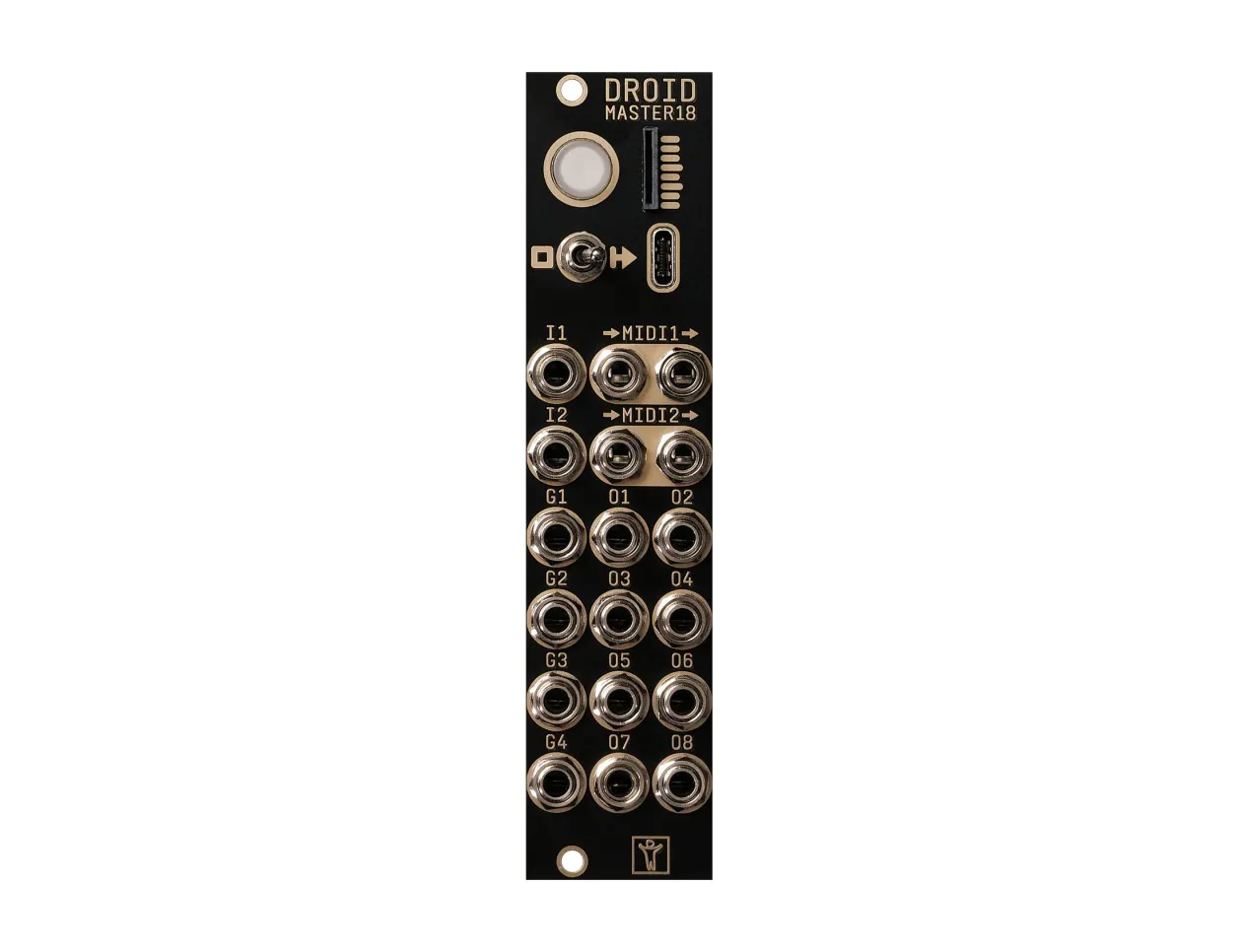

Der Mann mit der Maschine Droid MASTER18

Building on their expansive platform of multifunction modules and controllers, MASTER18 from Der Mann mit der Maschine is an alternative to the original Master module, now in a more affordable and compact package with integrated USB and MIDI I/O. Perfect for Droid setups that need to generate many voltage outputs but don't need to process incoming CVs, the Droid MASTER18 is ideal for creating MIDI to CV interfaces, sequencers, and complex CV generators. Using the simple editor software, you can create the device of your dreams using multiple "circuits", which may be used independently or combined for more complex functionality.

The Droid MASTER18 features on board MIDI and USB connectivity, making for a powerful palette for exploration with just the single module alone. Connect the MASTER18 with up to 16 Droid system controller modules, and set up hands-on control of your creation with encoders, faders, buttons, switches, and more. With eight CV outputs, four gate outputs, two MIDI I/O pairs, and two gate inputs, the MASTER18 can become any number of powerful operators for your system. Whether you are creating a bespoke sequencer, expandable MIDI to CV interface, compact CV utility, or any number of other possibilities, the Droid MASTER18 is a fantastic way to start exploring what the Droid system can bring to your setup.

Droid MASTER18 Features

• Scriptable multifunction module for the Droid platform
• Integrated MIDI and USB connectivity
• Compact alternative to original Droid
• Optimized I/O for Droid patches that don't need to process incoming CV
• Perfect for creating MIDI-to-CV converters, sequencers, CV generators, and more
• CV/gate I/O: 2x gate inputs, 4x gate outputs (0-5V), 8x CV outputs (+/-10V)
• 2x MIDI interfaces with 3.5mm TRS type-B input and output
• MicroSD card reader stores patch file
• USB connectivity for MIDI I/O or accessing SD card
• Create your own functionality from simple building blocks using the Droid Forge editor software
