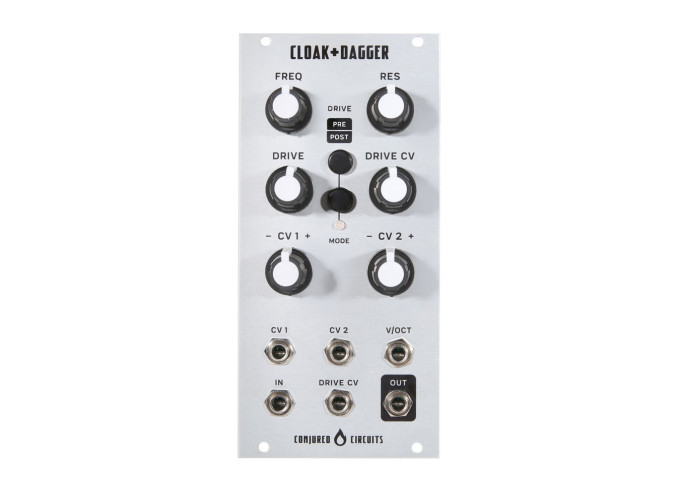

Conjured Circuits Cloak & Dagger

Conjured Circuits has produced the Cloak & Dagger, a completely analog filter / distortion module based on the ARP 4072 "post-lawsuit" filter.� With resonance compensation, switchable drive pre and post filter, and attenuverters for both CV inputs, the Cloak & Dagger is an incredible way to add several flavors of 2600-style sound to any Euro rig.

Cloak & Dagger Features

  • 4-pole lowpass filter based on the ARP 2600 4092 submodule, the "post-lawsuit" filter
  • Switchable drive for input and output with dedicated level control and CV input with attenuator
  • Two CV inputs for cutoff frequency with dedicated attenuverters
  • Self-oscillates at ~80% resonance
  • Built-in "resonance compensation" ensures low frequency levels remain consistent as resonance is increased
  • Dedicated 1V/oct input for musical filter tracking
  • Mode LED indicates selected drive settings
  • Eurorack module
  • Current draw: 43mA @ +12V ; 47mA @ -12V
Product Demo Videos
Pittsburgh Primary Oscillator With Cloak & Dagger Filter
For this video we made a synth voice with the Pittsburgh Modular Primary Oscillator and the Conjured Circuits Cloak & Dagger as VCF and VCA. We used the "timbre" output of the Primary Oscillator which is either a sine or triangle wave run through a wavefolder. The Cloak & Dagger is an ARP 2600 style VCF with overdrive before and after the filter. Everything is sequenced by the Eloquencer, the LDB2 and expander create the drums, Rampage is an envelope and LFO, and everything is mixed with an Intellijel Quad VCA.
