BASTL InstrumentsCV Trinity Envelope LFO (Aluminum)

BASTL CV TRINITY

Bastl's CV Trinity is a CV output module boasting six channels. Each channel features a dedicated CV input and can switch between three modes: Automation, LFO, and ADSR.

Automation Mode features 32 steps of voltage memory, where the automation curve can be manipulated simply by pressing a knob and holding the record knob. Whats more, the LFO extends into audio rate and features shape selection as well as XOR waveshaping. Additionally, the LFO can sync with the internal clock, enabling users to select divisions and multiplications via the Rate knob.

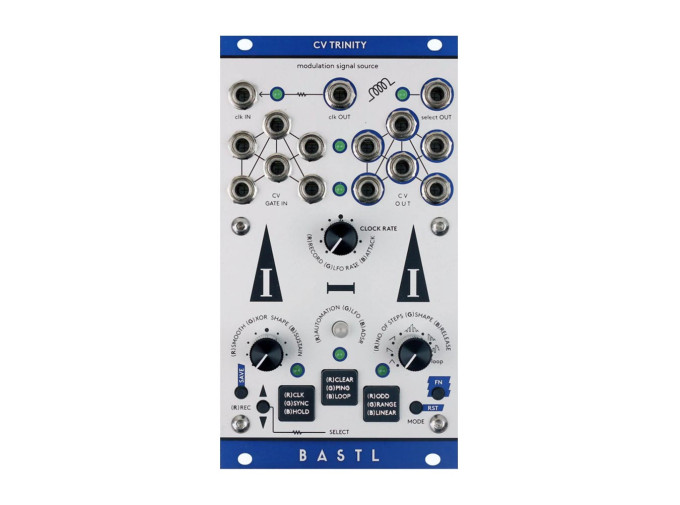

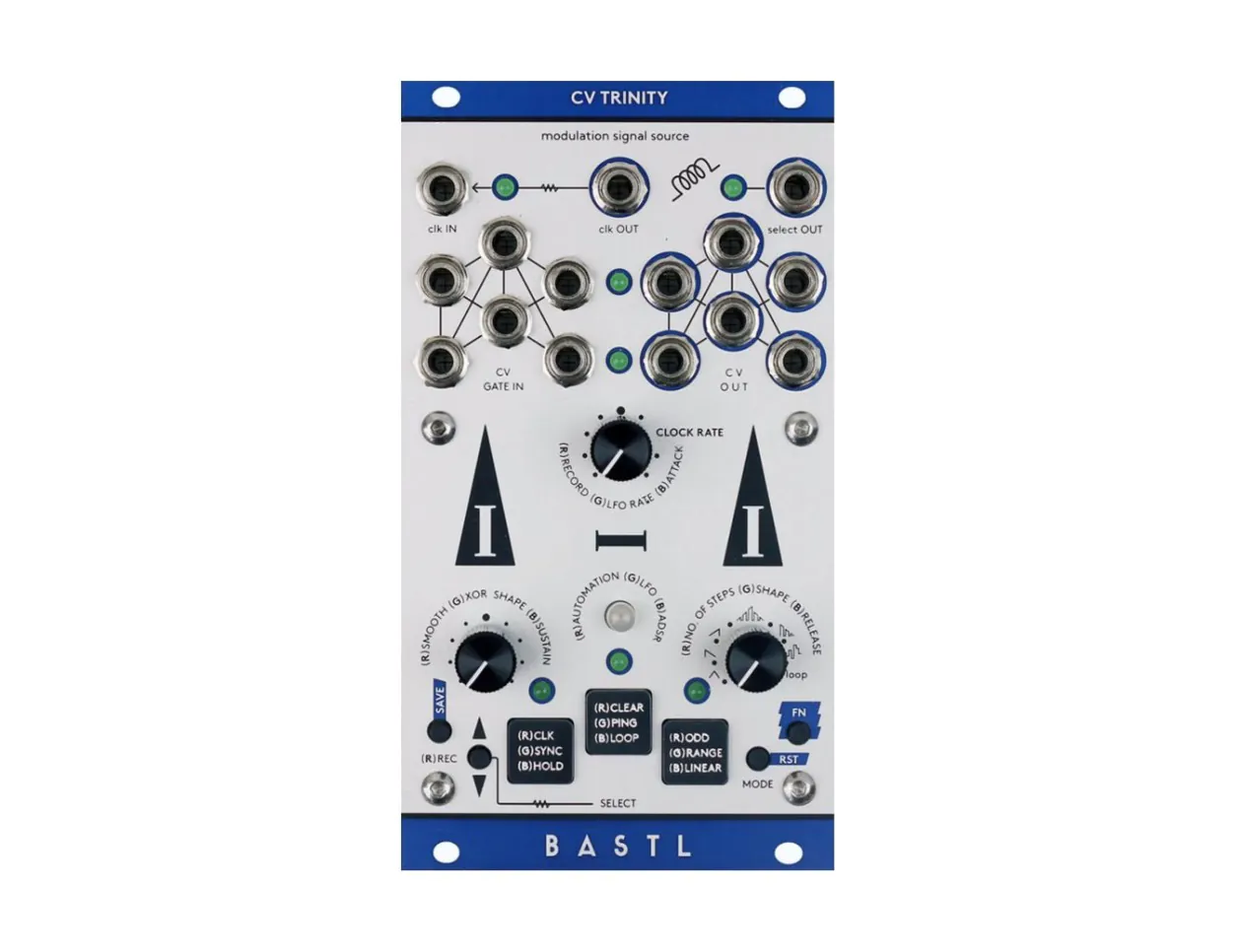

This version of the CV Trinity features an ALUMINUM faceplate.

CV Trinity Features

• 6 independent modulation channels
• CV input and CV output per channel
• Select OUT outputs current selected modulation channel with indication LED
• Each channel can be either AUTOMATION, LFO or ADSR
• AUTOMATION: clocked 32 step memory with adjustable linear interpolation and quantization options
• LFO: rate, xor waveshape, shape (ramp, inverted ramp, triangle, flopping ramp, flopping triangle, stepped random with smoothing and looping), sync
• ADSR: attack, sustain , decay set to same value as release, linear or exponential, looping mode, attack-hold-release mode
• Jumpers to select 0-5V or 0-10V range for each CV input
• Clock input
• Clock generator output normalized to clock input
• Aluminum front panel
