S.B.G-PRO External Equipment Interface
Preorder
Preorder Reserve yours todayALM Busy Circuits S.B.G-PRO

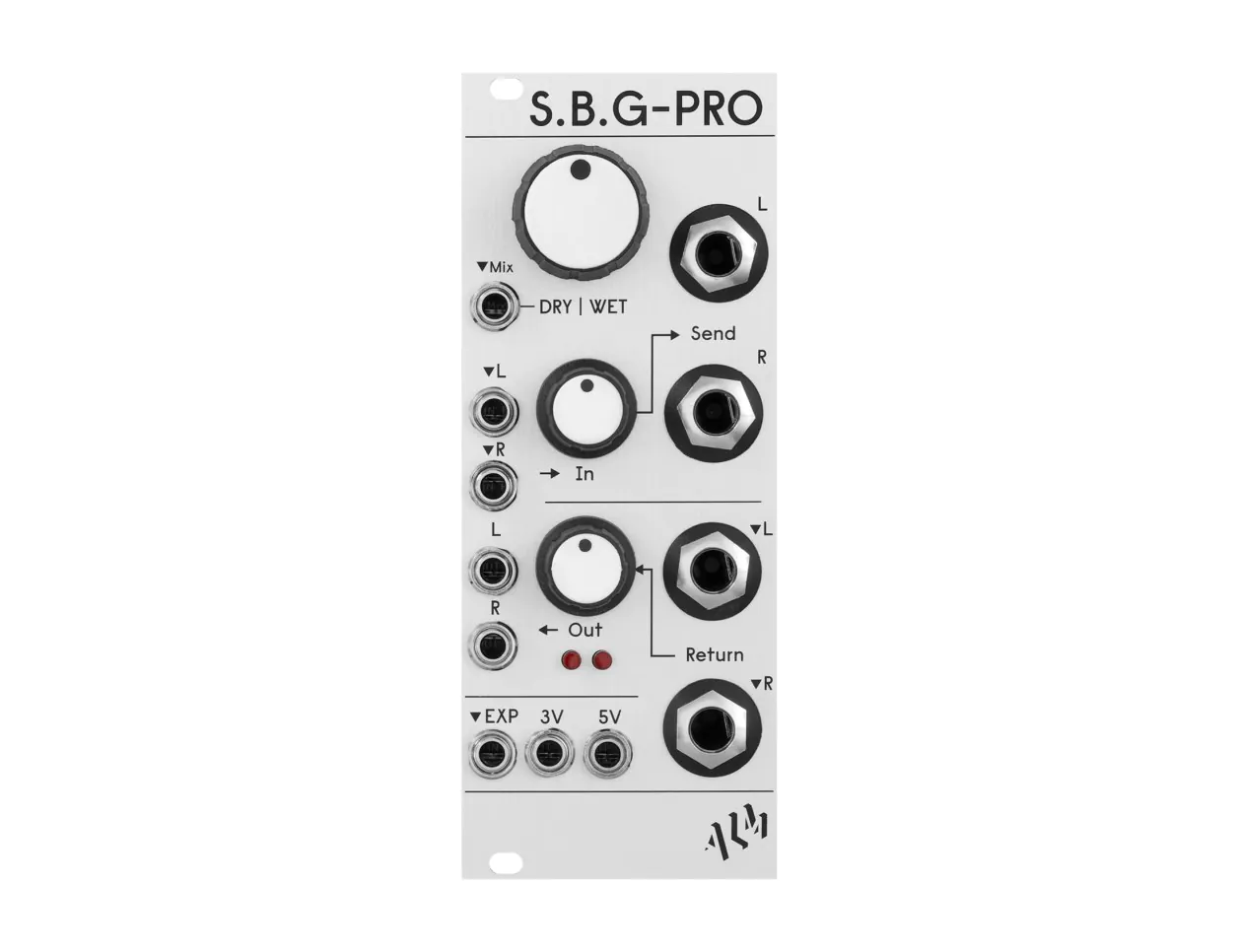

The S.B.G-Pro from ALM Busy Circuits offers a premium interface for incorporating a Eurorack modular system with external equipment like 500 series modules, consoles, and effects. Both a complement to and extension of ALM's original S.B.G. module, the S.B.G-Pro supports a greater array of external equipment types, with full size 1/4" TRS Neutrik connectors for both the stereo send and return jacks. Whether you are working with mono, stereo, balanced, or unbalanced signals, the S.B.G-Pro has you covered with flexible connectivity and independent send and return controls to ensure signals sound their best.
The Dry/Wet control and CV input adjusts the balance of the original and effect-laden signals, enabling parallel processing, dub-style delay throws, and more. At the bottom of the panel, a 3.5mm expression input can be used with an included floating-ring cable, providing safe CV control of external expression inputs in both 3V and 5V standards. Whether you are racking up a dedicated effects processing system or need a versatile interface for incorporating a modular synth with the rest of your studio, the S.B.G-Pro from ALM Busy Circuits is a fantastic solution.
S.B.G-PRO Features
- Premium interface for incorporating external effects and other equipment with Eurorack systems
- 1/4" TRS Neutrik connectors for stereo send and return suitable for mono, stereo, balanced, and unbalanced signals
- Manual and CV control over crossfading between dry and wet signals
- Independent level controls for send and return channels
- LED peak meter on return input
- Expression input with 3V and 5V outputs for controlling external gear with CV
- Floating ring cable included to ensure safe CV control over external expression inputs
- Useful as a Eurorack interface for outboard gear or a premium balanced output
Product Details
- Eurorack module
- Width: 10hp
- Depth: 32mm
- Current draw: 60mA @ +12V, 55mA @ -12V, 0mA @ +5V
