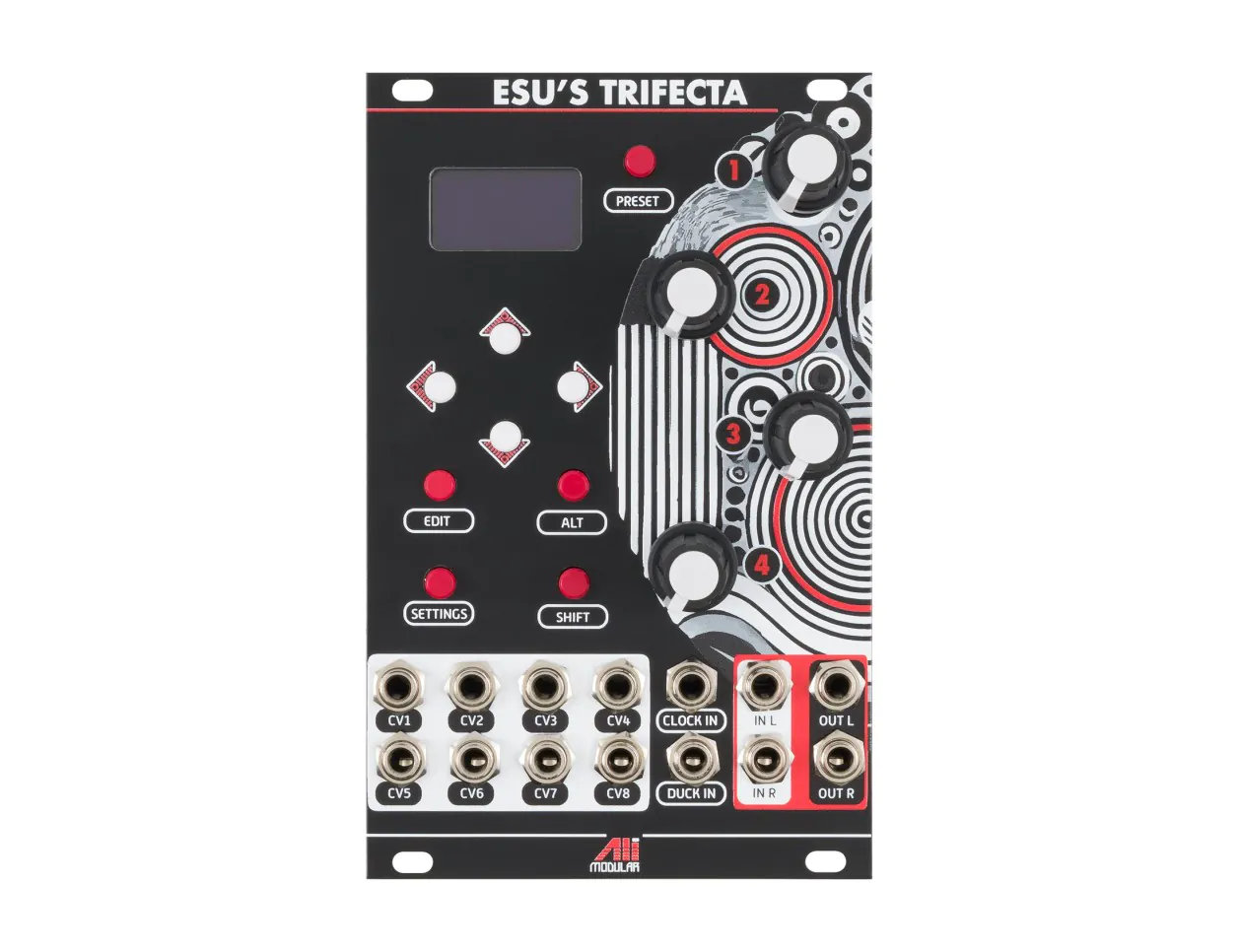

Esu's Trifecta Triple FX Engine

Ali Modular Esu's Trifecta

Esu's Trifecta from Ali Modular is an expansive stereo multi-effects processor for Eurorack systems, providing ultra-flexible signal mangling with three effects per preset. Inspired by the Yoruba orisha Èṣù, a mischievous trickster and intermediary between human and spiritual worlds, Esu's Trifecta is designed to invite opportunities for unpredictable sonic transformations while providing plentiful tools for finding harmony and balance amidst the chaos. A growing library of FX are at your disposal for experimentation, from EQs and filters, Distortion and Bit crushing, to lush modulation, reverbs, delays, and pitch effects. Select three effects to craft custom signal chains, and reorganize or bypass FX on the fly. Store your favorite chains as a preset, which can be recalled manually or via CV for powerful live control.

Designed for maximum flexibility in both hands-on and CV-controlled audio manipulation, Esu's Trifecta provides eight freely assignable CV inputs and four knobs each with an alternate control. For time-based and clockable effects, a clock input enables synchronization with other elements of your musical moment, while a dedicated Duck input allows for gates and triggers to duck the FX output for dynamic phrases. Despite the complexity Esu's Trifecta capably provides, navigation and configuration are intuitive and efficient with dedicated navigation controls and a clear OLED screen. A transcendent triumvirate of sonic expansion, Esu's Trifecta is a perfect addition to nearly any system, delivering unique effects and flexible configuration to inspire new musical moves through familiar and esoteric worlds alike.

Esu's Trifecta Features

• Stereo multi-effects processor
• Select three effects per preset for powerful signal manipulation
• Reorder and bypass FX on the fly
• Store presets for later recall manually or with CV
• 8x assignable CV inputs for versatile automation control
• Clock input for synchronizing effects
• Duck input for creating dynamic FX processing with triggers and gates
• 4x potentiometers with alternate modes for up to 8 parametric controls
• Intuitive and efficient UI navigation with dedicated controls, quick menus, and high contrast OLED screen
• Stereo signal processing with mono-to-stereo capability
• FX algorithms include:
  • EQ & Dynamics: 4-Band EQ, Compressor, Ducking
  • Distortion & Bit Manipulation: Distortion, CrushTone
  • Modulation: Phaser, Flanger, Tremolo, Chorus, Auto Pan, RingMod
  • Filters: Ladder Filter, Filter Sweeper
  • Reverbs: Esu's Verb, Esu's Shimmer, Storm Verb, Shimmer Storm
  • Delays: Delay Designer, Professor X Delay, Esu's Ridim, Esu's Tape, Ping Pong, Reverse Delay
  • Pitch Effects: Pitch Shifter
  • More will be added via Firmware updates
