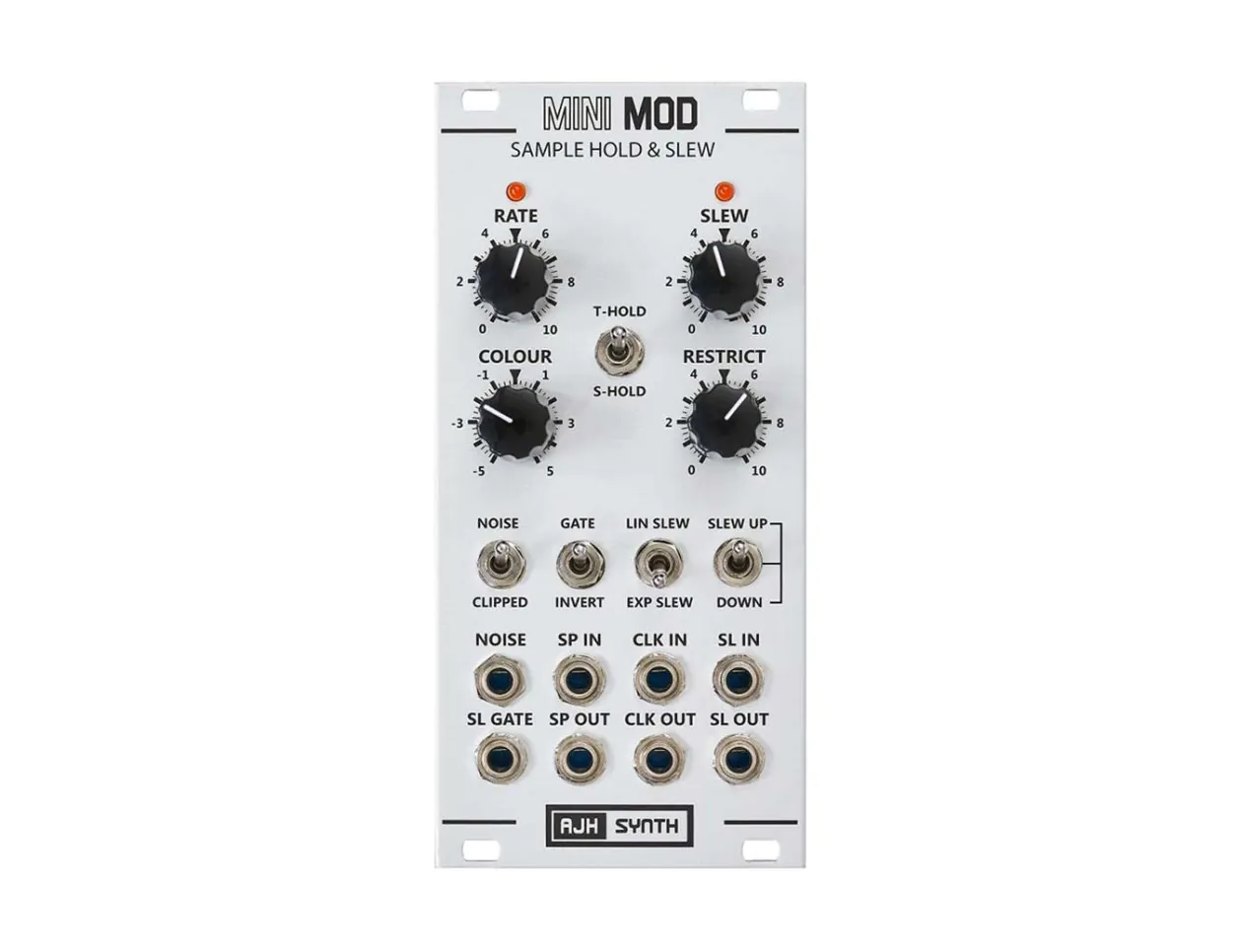

Sample Hold & Slew (Silver)

AJH Synth Sample Hold & Slew

Sample Hold and Slew from AJH MiniMod series is a highly robust modulation and random source module that holds quite a few tricks up its sleeve. A simple switch in the center switches between two main operation modes of the module— sample & hold, and track & hold. The circuit is fed by a choice of two nose sources—white noise and clipped noise, with the latter producing a larger voltage fluctuations. The unit can be clocked externally, however internal clock with a huge range is provided and can also be used to control other modules in the system.

Another intersting aspect of the module is the Restrict knob, which, when turned all the way clockwise, limits the output voltage to move in smaller amounts.

Also, the module includes a feature packed slew generator. Gated, unipolar, bipolar, linear, and exponential slews are all part of the package.

Sample Hold & Slew Features

• Sample&Hold
• Track&Hold
• Slew generator with adjustable polarity
• Internal clock with a range of 1 cycle every 30 seconds to 2kHz
• White or clipped noise out
