AI SynthesisAI007 Quad VCA (Black)

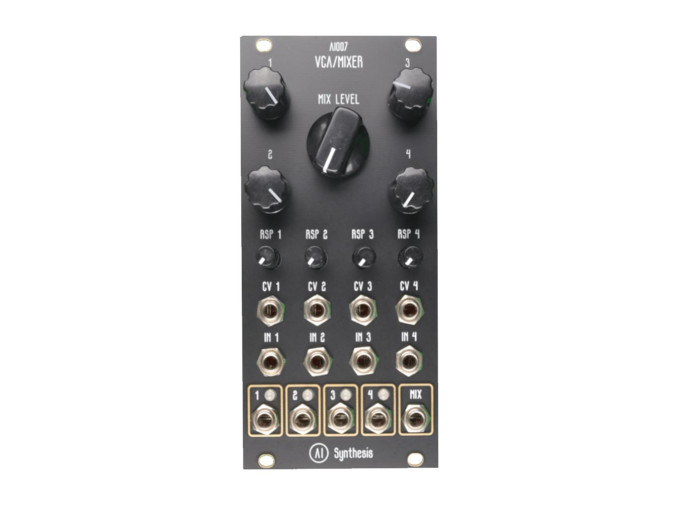

AI Synthesis AI007 Quad VCA

Whether you're mixing your audio or CV signals, or are simply in need of a bunch of VCAs, the AI007 Quad VCA Mixer from AI Synthesis will provide you maximum processing control with four independent VCAs. Each VCA has a dedicated input, output, and CV input for shaping a variety of instruments, sounds, or modulated modulation! The AI007's individual CV controls also act as level controls when nothing is plugged into the CV input—you can further shape your CV signals' effect on the VCA via the response controls per channel, changing the CV from linear to exponential response.

When no output is directly patched, all channels sum to the mix output, a channel with its own individual level control. As soon as you start taking individual outs and routing them elsewhere, you break the normalization and that signal won't route to the mix output. On top of that, each individual output has an LED to indicate polarity of signal. Create interesting sonic and modulation mixes with the AI007 Quad VCA Mixer from AI Synthesis.

AI007 Quad VCA Features

• Quad VCA mixer module
• Four inputs with dedicated outputs and CV inputs
• Individual channel controls can act as amplitude offset or switch to attenuators for the CV input
• Each channel has response mixer that morphes from linear to exponential response (RSP)
• Mix output sums unused VCA outputs together with an individual level control
• Using an individual output separates it from the mix output
• Individual output LED polarity indicator
