Adventure AudioMerge (Black)

Rating:
100% of 100
Item#
N13-0368
16hp
$249.00

Out of Stock Reserve your order today!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

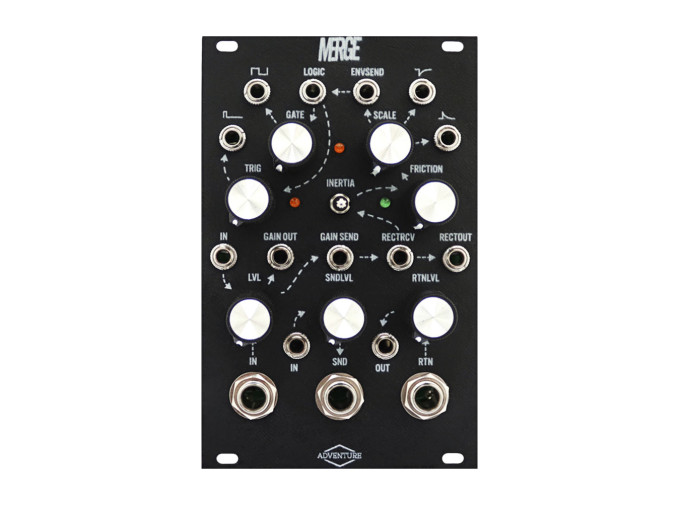

Adventure Audio Merge

Merge from Adventure Audio is a one-stop-shop module designed to be a mediator between the worlds of guitars and Eurorack. The module features plenty of routing options and controls that not only balance out signal levels, and pass the audio between the two worlds, but also extract useful voltages from the signals that can be further used creatively in the patches. The module can be dissected into 3 distinct sections: an amplifier, an effects loop, and logic/utility. An amplifier can boost the guitar signal up to modular level. The effects loop section is perfect for integrating pedals and other units into your patches, or simply for bringing the modular level signals down so that it can leave the confines of the rack. Finally, the logic/utility section boasts with plenty of options for extracting meaningful voltages from the audio signals. This section contains a very robust envelope follower capable of turning any signal’s dynamic contour into control voltages, triggers, and gates. Acting as sort of a bridge between guitars and synthesizers, this module can be a perfect solution for those of us who dwell in both of these distinctly rich worlds.

Merge Features

  • 1/4" and 1/8" jacks for In, Send, and Return
  • RECTRCV (Rectified Receive) normalled to Gain Send and is used as an input for the envelope follower
  • RECTOUT (Rectified Output) provides a full wave rectified version of the signal
  • Envelope Follower output both regular and inverted signals
  • Separate gate and trigger outputs
  • Eurorack module
  • Width: 16hp
  • Depth: 36mm
  • Current draw: 50mA @ +12V, 80mA @ -12V
