ADDAC SystemADDAC814 6x6 Stereo Matrix Mixer

ADDAC System ADDAC814

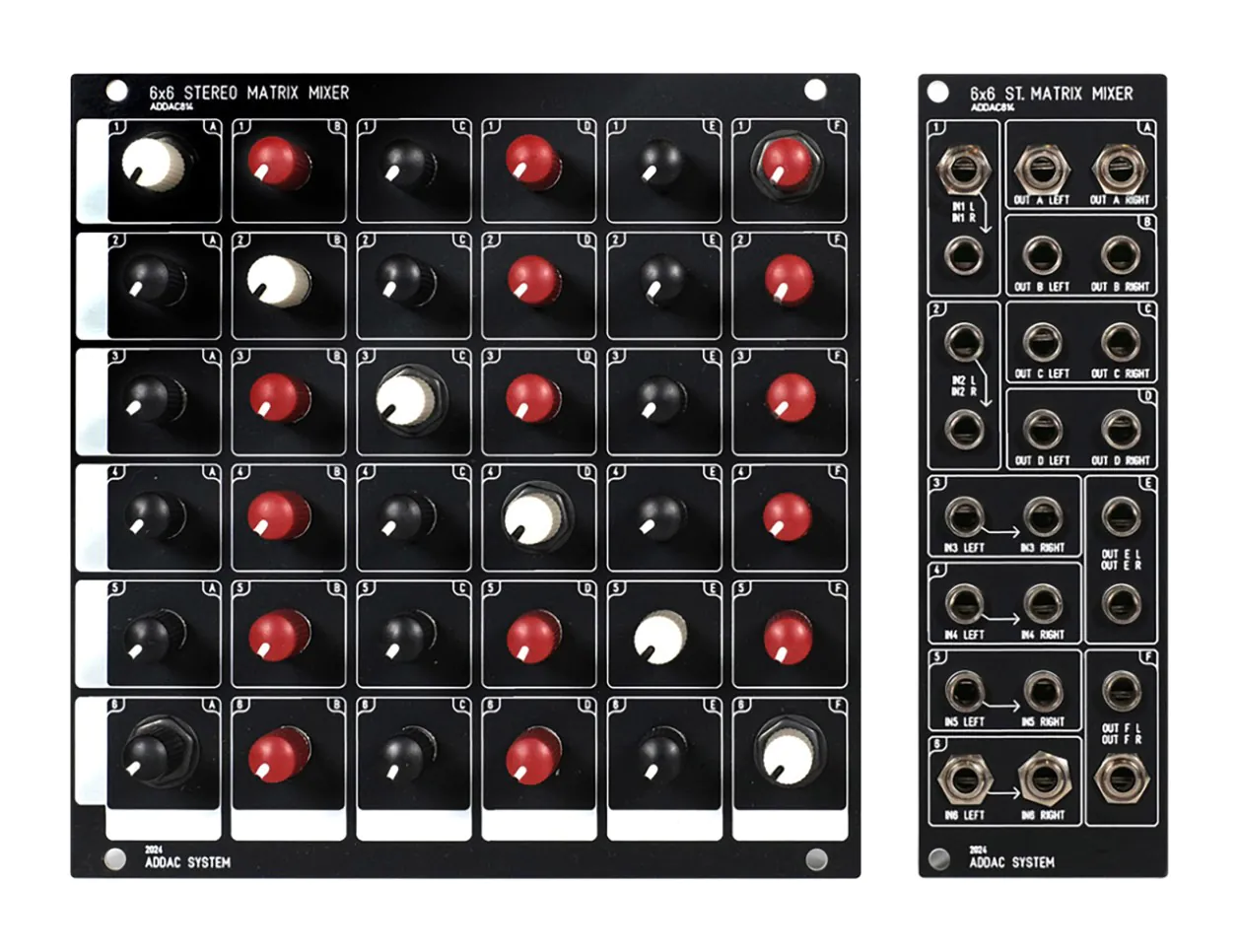

The ADDAC814 is a 6x6 stereo matrix mixer, offering incredible signal routing flexibility and expandability to enable matrices of monstrous proportions. Sold as a pair of ADDAC814A and ADDAC814B, the input and output jacks are kept separate from the thirty-six knobs, providing ample finger space for manipulating its physical controls. Each stereo channel may be selectively mixed to one or more of the stereo outputs, with normalization on the inputs to make sure your mono sources can get in on the matricial mayhem. To allow for further signal inclusivity, each channel is DC coupled, making it suitable for CV and audio alike.

With a color-coded layout, the diagonal nodes are marked clearly to help avoid accidentally creating feedback when you aren't trying to. Aside from these diagonal positions, alternating columns of red and black knobs help orient you amidst the interface, while white space provides room for labeling each connection if you desire. The ADDAC814 is also wildly expandable, including all the ribbon connectors you need to assemble 12x12 matrices, with even larger arrangements possible with more connectors. As a fantastically flexible tool, the ADDAC814 excels at feedback patches, complex effects routings, multichannel mixing, and complex CV mixing, offering endless creative possibilities in all sorts of systems.

ADDAC814 Features

• 6x6 stereo matrix mixer
• 25HP knob interface + 8HP input/output module keeps knobs free of cable spaghetti
• Stereo inputs and outputs for each channel with left-to-right normalization for mono sources
• DC coupled, suitable for audio or CV
• Easy to read color-coded knob layout
• Space for labeling channels with mixer tape
• Virtually limitless expandability with additional units and connector cables
• Includes cables to connect up to 12x12 matrices
• Jumpers on back of module for selecting synth or line level output levels per-channel
