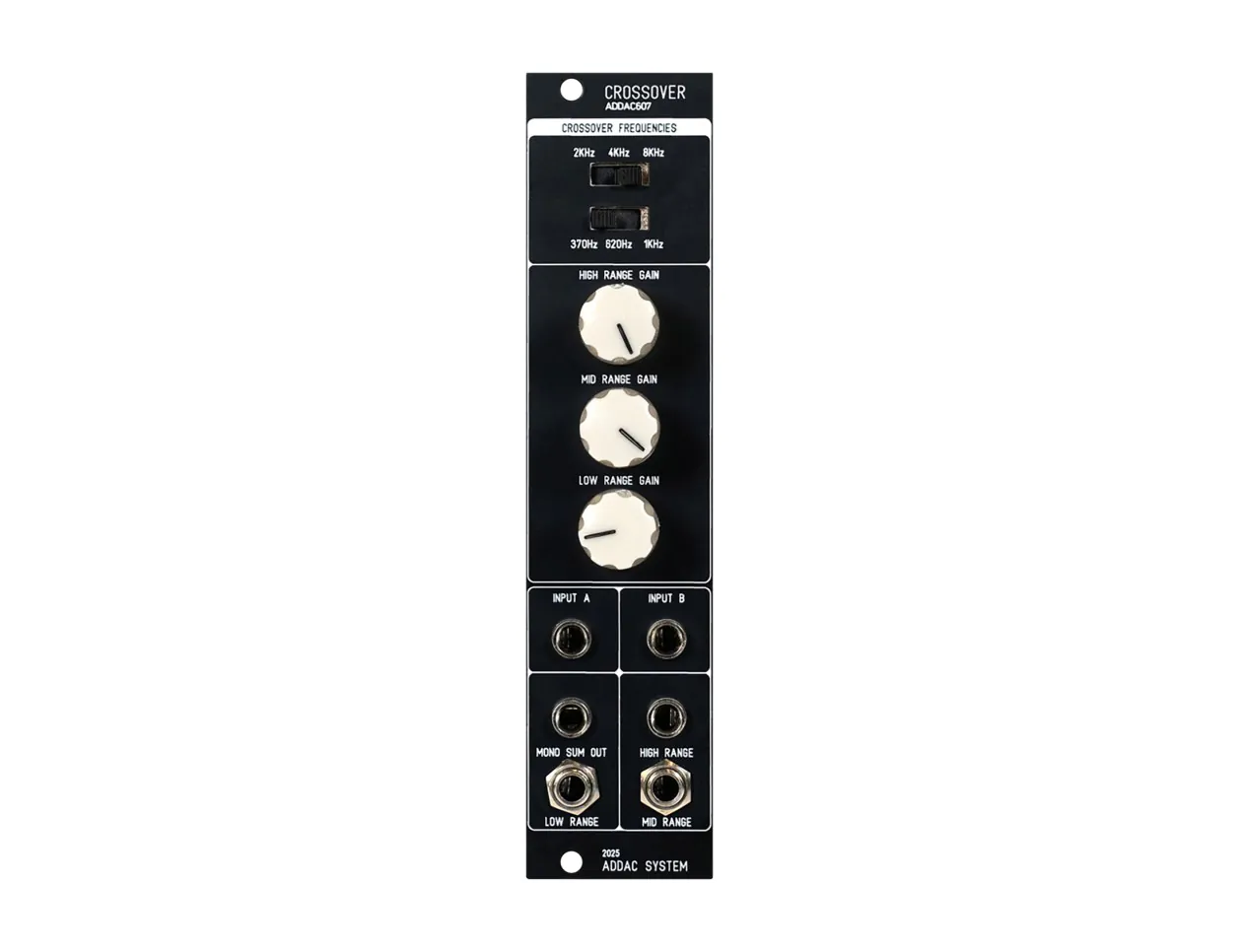

ADDAC607 Crossover

ADDAC System ADDAC607

ADDAC607 is ADDAC Systems' mono three-band crossover that splits incoming audio into high, mid, and low-frequency bands using 24dB/oct Sallen-Key active filters, each with independent gain control. Designed for both sculpting and signal routing applications, it supports mono or stereo-to-mono summing and offers individual outputs per band—ideal for multiband compression, spectral FX routing, or isolating dynamics via pairing with other modules like the ADDAC220. With selectable crossover points for each range and buffered mono output, this compact utility module adds deep spectral control to any patch.

ADDAC607 Features

• Mono 3-band crossover with 24dB/oct Sallen-Key filters
• Selectable frequency ranges: 370Hz–1kHz (low), 2kHz–8kHz (high)
• Independent gain controls for each band (unity to x2)
• Mono summing from stereo input with buffered thru
• Separate band outputs for multiband processing
